Standard Equipment
- Automatic lubrication system
- Universal Vertical Head ISO-40 with articulated support
- Low voltage electrical with pendant control
- Complete coolant system
- Chip and coolant tray
- One milling arbor 1” (25.4mm); Length:22”(558mm);2 swing bushing
- Two arbor supports
- Table backlash eliminator (Climb Milling)
- Variable speed spindle
- Instruction manual, service tools, test report
- Universal table swivel ±45o
- Variable power feeds in all direction with 3-axis rapid traverse
- Electrics: 220V; 3ph; 60 Hz 220V NEMA type column mounted electrics with emergency stop and electric box disconnect switch.
- Step down transformer 110V to push buttons
Castings
Lagun milling machines use a special high-strength gray cast iron produced by the Meehanite process and who’s physical and chemical properties provide low damping capacity, high modulus of elasticity, and excellent wear characteristics. These castings are produced in accordance with ASTM A-4874 specifications with the material ranging from A-4874-40 to A-7874-45.
| Machine Specifications | |

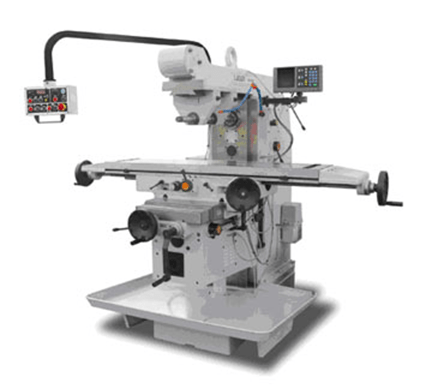

| MODEL | FU-130-EF |
| Table | |
Table size |
51” x 11” (1,300 x 280 mm) |
T-slots |
3 on 2 ½” (3 on 64 mm) |
T-slot size |
5/8” (16 mm) |
Maximum weight on table |
660 lbs (300 kg.) |
Table swivel |
±45o |
Travels |
|
Table travel X-axis |
33 ½” (850 mm) |
Cross travel, Y axis |
11 ½” (290 mm) |
Knee travel, Z axis |
18 ¾” (475 mm) |
Distance from spindle to over arm |
5 ¾” (147 mm) |
Horizontal Spindle |
|
| MECHANICAL VARIATOR | |||||
| WITH 5.5 HP SPINDLE MOTOR | |||||
| RPM | POWER | TORQUE | |||
| MAIN SPINDLE | HP | kW | Nm | ft-lb | |
| LOW RANGE SPINDLE SPEEDS | 35 | 3.76 | 2.8 | 754 | 556.05 |
| 49 | 4.21 | 3.1 | 608 | 448.38 | |
| 65 | 5.15 | 3.8 | 556 | 410.03 | |
| 81 | 5.5 | 4.0 | 477 | 351.77 | |
| 108 | 5.5 | 4.0 | 357 | 263.27 | |
| 128 | 5.5 | 4.0 | 302 | 222.71 | |
| 162 | 5.5 | 4.0 | 238 | 175.52 | |
| 216 | 5.5 | 4.0 | 179 | 132.01 | |
| 250 | 5.5 | 4.0 | 154 | 113.57 | |
| HIGH RANGE SPINDLE SPEEDS | 252 | 3.76 | 2.8 | 105 | 77.43 |
| 350 | 4.21 | 3.1 | 84 | 61.95 | |
| 427 | 4.70 | 3.5 | 77 | 56.78 | |
| 500 | 5.50 | 4.0 | 77 | 56.78 | |
| 582 | 5.50 | 4.0 | 66 | 48.67 | |
| 700 | 5.5 | 4.0 | 55 | 40.56 | |
| 776 | 5.5 | 4.0 | 50 | 36.87 | |
| 923 | 5.5 | 4.0 | 42 | 30.97 | |
| 1164 | 5.5 | 4.0 | 33 | 24.34 | |
| 1552 | 5.5 | 4.0 | 25 | 18.44 | |
| 1802 | 5.5 | 4.0 | 21 | 15.49 | |
| Spindle Taper |
No. 40 |
| Main spindle diameter | 3 ½” (88 mm) |
| Arbor milling diameter | 1” (22 mm) |
| Number of speeds | Variable (Hi-Lo) |
| Range at 50Hz | 35-1899 RPM |
| Range at 60Hz | 42-2160 (±10%) RPM |
| Feeds | |
| Number of feeds | Cont. variable speed |
| Longitudinal and cross feed | 0 to 50” (0 to 1300 mm) |
| Vertical feed | 0 to 15” (0 to 390 mm) |
| Rapid Traverse | |
| Longitudinal and cross | 102 IPM (2600 mm/min.) |
| Vertical feed | 31.5 IPM (800 mm/min.) |
| Main Motor | |
| Main Spindle | 5.5 hp (4.1 kW) |
| Feed & Rapid traverse | AC Brushless 5 hp (3.74 kW) |
| Coolant pump | 0.12 hp (0.09 kW) |
| Physical | |
| Weight | 3970 lbs (1800 kg.) |
