ACRA 1440GWI Gear-Head Precision Gap Bed Engine Lathe

Price: Call for Price

Specifications:

Capacity: 14″/20″ x 40″
Swing Over Bed:  14″
Swing Over Cross Slide:  8-1/4″
Swing In Gap:  20″
Length of Gap: 9-3/8″
Distance Between Centers: 40″
Spindle Bore:  1-1/2″
Spindle Nose:  D1-4
Spindle RPM:  40 – 1,800 (12 Speeds)
Spindle Bearing Type: Taper Roller Bearing
Longitudinal Feeds: 0.0011″~0.0271″/rev.
Cross Feeds: 0.0003″~0.01″/rev
Inch Treads(28): 4-56 TPI
Metric Threads(37): 0.45mm~7.0mm
Maximum Tool Size: 1″x1″
Compound Slide Travel: 3-1/2″
Cross Slide Travel: 6″
Carriage Travel: 37″
Tailstock Travel: 4-5/4″
Diameter of Tailstock: 1-7/10″
Tailstock Taper: MT#3
Main Motor:  4 HP
Voltage: 220/440V AC / 3PH

Standard Equipment:

  • 260mm (10-1/4″) extra wide bed ways with harden and grounded
  • Available with three phases or single phase motor
  • One piece case iron floor stand
  • Special larger 190mm (7″) D1-4 3 jaw scroll chuck
  • ISO9000 Certified factory
  • 6″ 3 Jaw Chuck
  • 8″ 4 Jaw Chuck

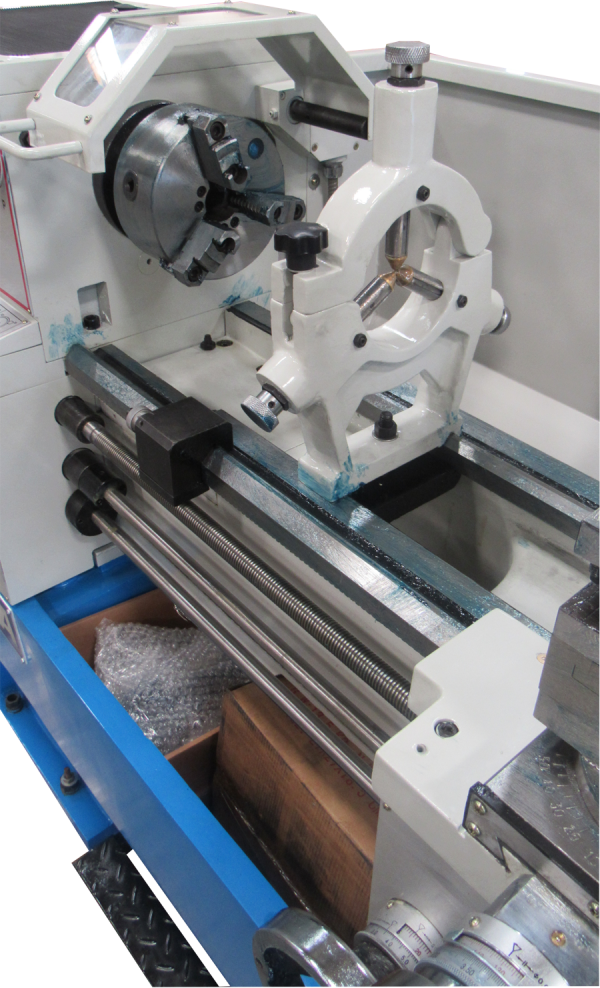

  • Steady/Follow Rest
  • 4 Way Tool Holder
  • Coolant System
  • Foot Brake
  • Full Length Splash Guard
  • Micro Bed Stop
  • Chuck Guard
Category:

1440GWI Gear-Head Precision Gap Bed Engine Lathe

Specifications:

Capacity: 14″/20″ x 40″
Swing Over Bed:  14″
Swing Over Cross Slide:  8-1/4″
Swing In Gap:  20″
Length of Gap: 9-3/8″
Distance Between Centers: 40″
Spindle Bore:  1-1/2″
Spindle Nose:  D1-4
Spindle RPM:  40 – 1,800 (12 Speeds)
Spindle Bearing Type: Taper Roller Bearing
Longitudinal Feeds: 0.0011″~0.0271″/rev.
Cross Feeds: 0.0003″~0.01″/rev
Inch Treads(28): 4-56 TPI
Metric Threads(37): 0.45mm~7.0mm
Maximum Tool Size: 1″x1″
Compound Slide Travel: 3-1/2″
Cross Slide Travel: 6″
Carriage Travel: 37″
Tailstock Travel: 4-5/4″
Diameter of Tailstock: 1-7/10″
Tailstock Taper: MT#3
Main Motor:  4 HP
Voltage: 220/440V AC / 3PH

Standard Equipment:

  • 260mm (10-1/4″) extra wide bed ways with harden and grounded
  • Available with three phases or single phase motor
  • One piece case iron floor stand
  • Special larger 190mm (7″) D1-4 3 jaw scroll chuck
  • ISO9000 Certified factory
  • 6″ 3 Jaw Chuck
  • 8″ 4 Jaw Chuck
  • Steady/Follow Rest
  • 4 Way Tool Holder
  • Coolant System
  • Foot Brake
  • Full Length Splash Guard
  • Micro Bed Stop
  • Chuck Guard

Description

Acra Machinery’s 1440GWI Gear-Head Precision Engine Lathe features the following:

  • Gear-head spindle lets you select speeds without having to fuss with belts or pulleys.
  • Shifting gears is as easy as switching a couple of front-mounted levers.
  • Quick change gearbox makes thread cutting selection fast and efficient.

Additional information

Weight 2540 lbs
Dimensions 78 × 30 × 60 in
