Lube USA Products at Emrick

Automatic intermittent piston pump MMX-II
Automatic intermittent piston pump MMX-IIMotor driven automatic piston pump.

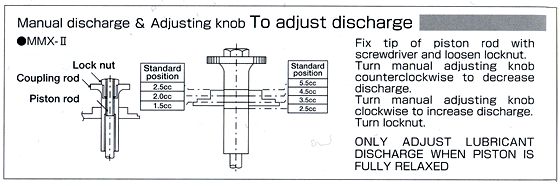

There are 7 interval time settings with 2 sets of volume discharge 2.5cc and 5.5cc/stroke
Specifications
Discharge volume 1.5～2.5cc/stroke
2.5～5.5cc/stroke
Discharge pressure 0.4MPa(4kgf/cm2)58psi
Power AC100V/1φ AC 200V/3φ(50-60Hz)
AC110V/1φAC 220V/3φ(50-60Hz)
Rated current AC100V/0.2mA, 200V/0.11mA (50Hz)
Motor Induction motor, E class, 4P Output 5W
Operation rate Continuous
Working viscosity range 32～1300cSt
Oil level switch Contact type : A contact (ON at low level)
Contact capacity : 0.5A, AC･DC200V/30W
Reservoir capacity 1.8ℓ , 3ℓ : Resin
3ℓ , 4ℓ , 8ℓ : Metal
Weight 1.8 ℓ : 3kg/6.6lbs
Others Rotary directions : Clockwise
A 2µF condenser for the 100V motor is integrated into the terminal box.
Automatic intermittent piston pump
Part Number
Discharge oil volume2.5cc without oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
100V 200V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
312569 302569
O

312568 302568
O

312567 302567
O

312566 302566
O

312565 302565
O

312595 302595
O

312596 302596
O

Discharge oil volume2.5cc with oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
100V 200V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
342569 332569
O

342568 332568
O

342567 332567
O

342566 332566
O

342565 332565
O

342595 332595
O

342596 332596
O
Discharge oil volume5.5cc without oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
100V 200V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
312579 302579
O

302578 302578
O

312577 302577
O

312576 302576
O

312575 302575
O

312597 302597
O

312598 302598
O
Discharge oil volume5.5cc with oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
100V 200V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
342579 332579
O

342578 332578
O

342577 332577
O

342576 332576
O

342575 332575
O

342597 332597
O

342598 332598
O
Dimensional drawing
Automatic intermittent piston pump Dimensional drawing
Automatic intermittent piston pump Dimensional drawing
Part Number
Discharge oil volume2.5cc without oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
110V 220V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
162514 162507
O

162513 162506
O

162512 162505
O

162511 162504
O

162510 162503
O

162509 162502
O

162508 162501
O
Discharge oil volume2.5cc with oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
110V 220V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
162544 162537
O

162543 162536
O

162542 162535
O

162541 162534
O

162540 162533
O

162539 162532
O

162538 162531
O
Discharge oil volume5.5cc without oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
110V 220V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
162528 162521
O

162527 162520
O

162526 162519
O

162525 162518
O

162524 162517
O

162523 162516
O

162522 162515
O
Discharge oil volume5.5cc with oil level switch 1.8ℓ resin reservoir
Part Number
Interval time(in case of 50Hz)
Motor Voltage
110V 220V 1min25sec 3min45sec 7min30sec 15min 30min 60min 120min
162558 162551
O

162557 162550
O

162556 162549
O

162555 162548
O

162554 162547
O

162553 162546
O

162552 162545
O
