 Motor driven gear pump for continuous micro-volume lubrication used with
a resistance type Centralized Lubrication Equipment |
 |
| Specifications |
|
|
| Discharge volume |
AMS-1.5
1.25cc/(50Hz),1.5cc/min(60Hz)
AMS-3
2.5cc/min(50Hz),3cc/min(60Hz) |
| Discharge pressure |
0.8MPa(8kgf/cm2)116psi |
| Power |
AC100V/1φ, AC110V/1φ, AC200V/1φ |
| Rated current |
AC100V : 50mA(50Hz),42mA(60Hz)
AC200V : 25mA(50Hz),18A(60Hz) |
| Motor |
Synchronous motor 3W
Rotary direction : clockwise |
| Operation rate |
Continuous |
| Oil level switch |
Contact type : A contact(oN at low level)
Contact capacity : 0.5A,ACEDC200V/30W |
| Reservoir capacity |
1.8ℓ |
| Weight |
1.8Kg |
|
|
| Part Number |
|
|
Part Number |
Pump model |
Motor |
Oil level switch |
100V |
110V |
200V |
102401 |
AMS-1.5 |
O |
|
|
|
102403 |
AMS-1.5 |
O |
|
|
O |
102402 |
AMS-1.5 |
|
|
O |
|
102404 |
AMS-1.5 |
|
|
O |
O |
102441 |
AMS-1.5 |
|
O |
|
|
102443 |
AMS-1.5 |
|
O |
|
|
102405 |
AMS-3 |
O |
|
|
|
102407 |
AMS-3 |
O |
|
|
O |
102406 |
AMS-3 |
|
|
O |
|
102408 |
AMS-3 |
|
|
O |
O |
102445 |
AMS-3 |
|
O |
|
|
102447 |
AMS-3 |
|
O |
|
|
102452 |
AMS-3 |
|
O |
|
|
102977 |
AMS-6-40L |
|
O |
|
O |
|
| Note:Call for other voltages. |
|

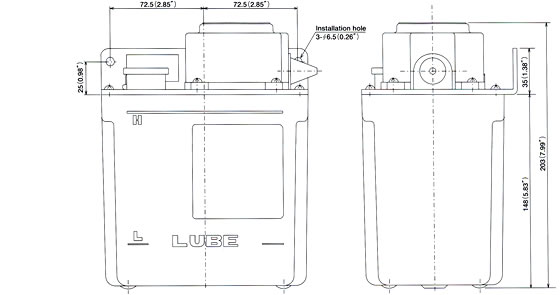

| Dimensional drawing |
 |
|
|

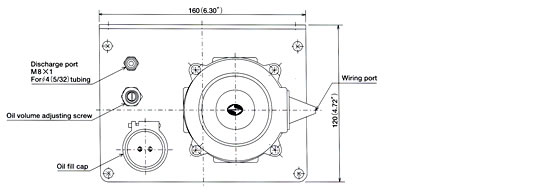

| Dimensional drawing |
|
|
