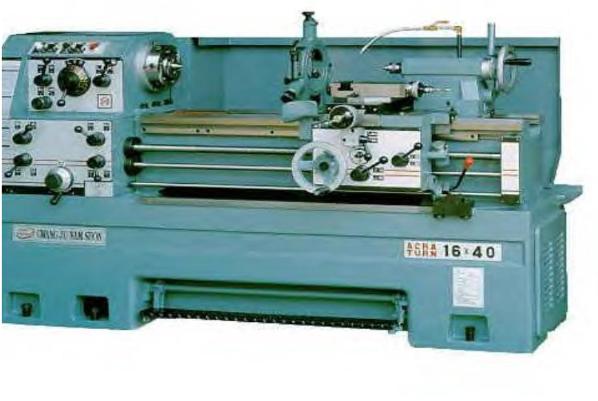

Acra Lathe



Acra Lathe
FEATURES
  • Series: 1600

  • Swing Over Bed: 15-1/2"

  • Swing Over Cross Slide: 9-3/8"

  • Swing In Gap: 24"

  • Spindle Bore: 2 1/8"

  • Spindle Nose: D1-6

  • Spindle RPM: 23-1800 RPM

  • Main Motor: 5 HP

  • Voltage: 220V AC - 3 Phase


  • STANDARD EQUIPMENT
  • 8" 3 Jaw Chuck (1600GN)

  • 10" 4 Jaw Chuck (1600GN)

  • Full Length Splash Guard

  • Face Plate

  • Coolant System

  • Steady Rest

  • Tool Box With Tools

  • Gap Bed


  • OPTIONAL ACCESSORIES
  • Micro Bed Stop

  • Follow Rest

  • Taper Attachment

  • Taper Attachment Installation

  • Lever Type 5C Collet Closer JFK

  • Import Collet Closer

  • Sargon Digital Read-Out-40"

  • Sargon Digital Read-Out-60"

  • Sony Digital Read-Out-40"

  • Sony Digital Read-Out-60"

  • Anilam Digital Read-Out-40"

  • Anilam Digital Read-Out-60"

  • Newall Digital Read-Out-40"

  • Newall Digital Read-Out-60"

  • D.R.O. Installation

  • Quick Change Tool Holder Made In USA

  • Import Quick Change Tool Holder

  • Halogen Light


  • MODEL - PRICE
    ATEL 16X40 GN Precision Engine Lathe -ATEL 16X60 GN Precision Engine Lathe - Prices apon Request.


    Specifications and prices are subject to change without notice.



    Financing Available

    Immediate Photos &
    Quotes By E-mail
